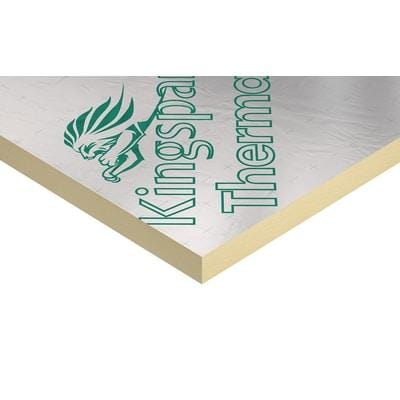

Kingspan Thermafloor TF70 Floor Board 1.2m x 2.4m - All Sizes - Kingspan Insulation
The option you have currently selected is a call to enquire option. Please call us on 020-3481-1978 for more information or select an alternative option.
Regular price
£234.35 £281.22
Now Only:
£234.35 £281.22
Sold out
Unit price

Kingspan Thermafloor TF70 Floor Board (All Sizes) 2.4m x 1.2m

SKU: TF70 20mm

Est Delivery between and .

Next Day Delivery on Orders placed before 11am (ex. weekends)

Order now and get free delivery on all Kingspan orders over £300 ex vat.

Please note that the Kingspan Therma Pir Insulation products (TF70, TP10, and TW55) are an identical product, marketed under different names for use in floors, roofs, and walls respectively.

Kingspan Thermafloor TF70 is a high quality PIR insulation board designed with floor applications such as solid concrete and suspended ground floors in mind. It significantly reduces the amount of heat that would otherwise escape through the floor. The energy saved in the process makes for a much more comfortable space, which in turns helps deliver long-term savings both on a financial and environmental level.

This floor board is a fantastic addition in any solid concrete ground-based floors, but it will also do very well in beam and dense block applications, suspended timber floors, or timber floors on battens. The Kingspan thermafloor board is very versatile and can be applied in any application that requires controlling heat loss.

The Thermafloor TF70 is able to deliver such an amazing thermal performance thanks to its really low U-value standing at just 0.022 W/mK. This means it is even easier to follow and comply with the current building regulations. A highly efficient PIR floor board is what you get when choosing Kingspan Thermafloor TF70. This high performance floor board offers rigid thermoset insulation and responds quickly to temperature changes and prevents heat loss through “heat sumps.” This is a cost-effective floor board as it minimises costs that can be incurred with soil removals, DPM’s, or even service connections.


  • High performance rigid thermoset insulation
  • Quick response floor heating that prevents heat loss through "heat sump"
  • Minimizes the cost of related items- soil removal, DPM's, service connections


  • Solid concrete ground based floor
  • Beam and dense block floor
  • Suspended timber ground floor
  • Timber floor on battens


  • High performance rigid thermoset insulation
  • Quick response floor heating - prevents heat loss through 'heat sump'
  • Minimizes the cost of related items - soil removal, DPM's service connections
  • Easy to handle and install
  • Non-deleterious material


  • Board size: 2.4m x 1.2m
  • Thermal conductivity: 0.022 W/m.K
  • Compressive strength: exceeds 140 kpa at 10% compression
  • Water vapour resistivity: greater than 100 MN.s/g
  • Fire rating: Euroclass F
  • Brand: Kingspan


Kingspan TF70 is manufactured to the highest standards under a management system under a quality control system that is approved to:

  1. BS/ I.S. EN ISO 9001: 2015 Quality Management Systems. Requirements)
  2. BS/ I.S. EN ISO 14001: 2015 Environmental Management Systems. Requirements)
  3. BS/ I.S OHSAS 18001: 2007 Health and Safety Management Systems. Requirements
Length 2400mm
Width 1200mm
Thermal Conductivity 0.022 W/mK
Material Type Polyiso

Est Delivery between and .

Next Day Delivery on Orders placed before 11am (ex. weekends)

Delivery will always take place on a weekday (Mon - Fri).
For information on delivery costs and more view our delivery info page.
