Roof Flashing | Roofing

Flashing

Flashing is a thin, waterproof layer of material used to prevent water from entering or infiltrating a building and to direct the flow of moisture into the walls. Flashing is important at roof edges and valleys, joints between roofs and vertical walls, and roof transitions or projections such as Chimneys, dormer windows, and ventilation pipes.

Roof Flashing

Roof Flashing is used to finish off the ends and corners of a series of roofing membranes and to help protect your building from water intrusion.

Roof Flashing is a thin material that roofers and contractors use to seal areas of the roof, especially leak-prone areas. The cover diverts water from vulnerable areas and allows it to flow off the roof into the gutter.

Flashing roof is a thin metal material that roofers install to direct water away from certain areas (walls, chimneys, roof valleys) of your roof. It’s a crucial roofing material that every roof needs to have.

A steel roll flashing is the most commonly used type of flashing today. It's an inexpensive metal that gives you a clean look and is compatible with most budgets. If you're looking for an upgraded look, copper is a great option. It has a longer lifespan than steel and looks great aesthetically, but it's more expensive upfront. When deciding which metal to use for your counter flashing, consider your budget and the look you're going for. Steel is a great all-around choice, but if you want something that looks nicer and lasts longer, copper is the way to go.

Roof flashing sizes

Installing or repairing roof flashing requires careful attention to size. The flashing around a plumbing vent, for example, must be wide enough to cover the entire vent. This measurement should be just slightly wider than the vent's diameter. The leads on the project also need to be taken into account. If they are not the right size, then the entire project could be at risk. After measuring the leads, be sure to select a flashing item number that will fit snugly around them. With the right size flashing in place, you can rest assured that your roof will be properly protected from potential leaks.

The design of your step flashing is important in order to ensure that it properly protects your home from weather damage. The pieces should be 10 inches (254 mm) long and at least 2 inches (50 mm) wider than the exposure of the shingle you’re using. For example, 3-tab shingles usually have a 5 5/8-inch (143 mm) exposure. Typically, 10- by 8-inch (253 mm x 203 mm) flash is chosen. Those 8 inches are more than enough to cover the exposure of typical shingles. The same size can be used to cover the longer exposure on Nordic shingles.

Types of roof flashing

Types of roof flashing are as follows:

Continuous flashing: Continuous flashing provides waterproofing where the roof meets the vertical wall and a sloped roof.

Step Flashing: Step flashing is an alternative to Continuous flashing, it overlapped to prevent water damage.

Valley flashing: Valley flashing is placed on top of the roof where two valleys of a roof join.

Vent pipe flashing: Vent Pipe flashing helps to prevent leaks and draught.

Cap flashing:  Cap flashing is installed around chimneys and it prevents cracks around the fittings.

What is drip edge flashing?

A properly installed drip edge flashing helps protect your home by directing water away from the deck, eaves, and gables. By keeping water off of these surfaces, you can help to prevent damage caused by rot, mold, and mildew. In addition, a drip edge can help to prolong the life of your gutters by preventing them from becoming clogged with debris. While a drip edge is not required by most building codes, it is generally considered to be best practice in order to help protect your home from water damage.

Metal drip edges are typically made of a non-porous, non-corroding metal, like galvanized steel, aluminum, or copper. Also, galvanized steel roll, aluminum roll flashing and other roll flashing item are also made. They can also be constructed out of durable plastic, vinyl, or fiberglass.

Galvanized steel drip edges are a common type of metal drip edge. They are made of a non-porous, non-corroding metal that is coated with a layer of zinc. This type of drip edge is typically used on roofs and gutters. Aluminum drip edges are another common type of metal drip edge. They are also made of a non-porous, non-corroding metal, but they are not coated with zinc. Instead, they are coated with aluminum oxide. This type of drip edge is typically used on windows and doors. Copper drip edges are the third type of metal drip edge. They are made of a non-porous, non-corroding metal that is coated with copper oxide. This type of drip edge is typically used on roofs and gutters.

Why do I need a Drip Edge on My Roof?

They Prevent fascia and soffit damage

Drip edges keep pests out of your home

They can keep your porch dry

They stabilize your roof

Drip edges protect your roof from ice dams

They protect your basement

How do you remove old lead flashing?

Lead flashing is a common material used in roofing and siding projects. It is durable and provides an effective barrier against water infiltration. However, over time lead flashing can become corroded, especially if it is exposed to harsh weather conditions. If you discover corrosion on your lead flashing, it is best to remove the entire strip of flashing and replace it with a new one. This will ensure that the integrity of your roof or siding is not compromised. To remove lead flashing, chip out the mortar holding it in place using a Plugging Chisel and Club Hammer. Remember to wear gloves and protective goggles when chipping out old mortar.

If you have an old house, it's likely that the base of your house is made of brick. Over time, the bricks can start to deteriorate and the mortar can crack and crumble. If this happens, it's important to strip out the old flashing and clean out the row of mortar where it sat using a wire brush. Then, repoint the joint with a standard mortar mix and allow it to dry overnight. You don't need to try to fit a new lead flashing in place of the old one. It would be tricky to do and would probably not offer the greatest of seals anyway. Instead, buy a roll of metal-backed flashing strip and some flashing primer. This will help to protect your house from water damage and will prolong the life of your brickwork.

Roof flashing products

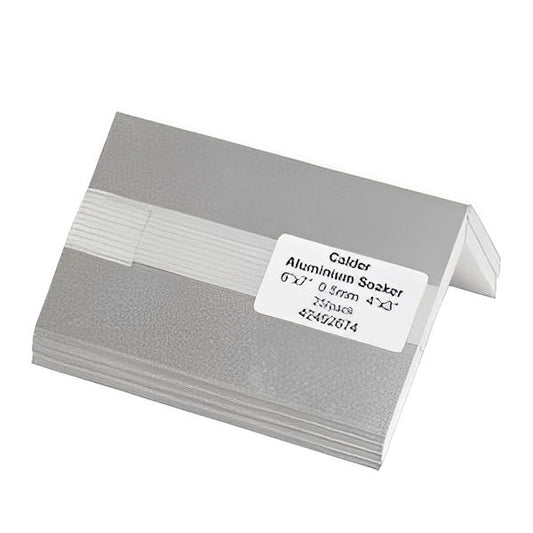

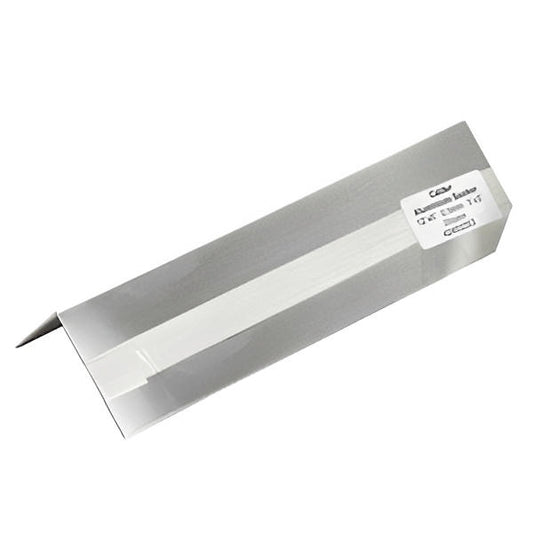

Roof flashing products are durable and also aluminium soakers. Tile flashing, Slate flashing, and lead flashing rolls are available with different brands.

Roof Flashing materials that are commonly used are Aluminium, Copper, and Steel. Sealant is also used to secure the roof.
