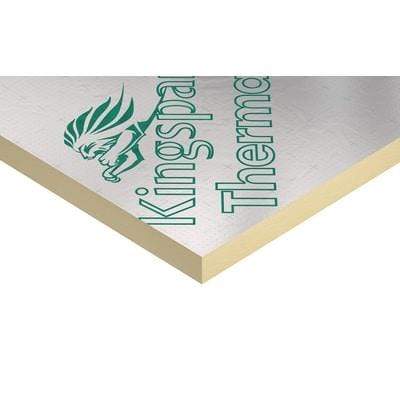

Kingspan Thermawall TW50 Cavity Wall Board 450mm x 1200mm - All Sizes

SKU: TW50 30mmCFP

Est Delivery between and

Next Day Delivery on Orders placed before 11am (ex. weekends)

The price shown is the price per pack. These products are sold in pack qtys only.

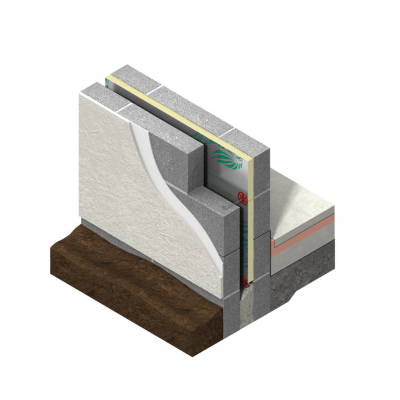

Partial fill cavity wall insulation using Kingspan TW50 allows you to provide a robust barrier to run penetration. The board features a PIR core which is bounded by low emissivity composite foil on both sides which offers high water vapour resistivity.

The insulation board, with its low thermal conductivity value and low affinity for moisture offers the best insulation to the cavity walls.The board is fabricated using a blowing agent that features zero Ozone Depletion Potential(ODP) and a low Global Warming potential (GWP)

Thickness Boards Per Pack Coverage Per Pack
30mm 16 8.64m2
40mm 12 6.48m2
45mm 11 5.94m2
50mm 10 5.4m2
60mm 8 4.32m2
70mm 6 3.24m2
75mm 6 3.24m2
80mm 6 3.24m2
100mm 5 2.7m2
Specifications:



  1. Board Size- 1200mmx450mm
  2. Thermal Conductivity- 0.022 W/mK
  3. Compressive strength- typically exceeds 140 KPa
  4. Water vapour resistance- 100 MNs/g
  5. Fire Performance- Euroclass F


Features:

  1. High performance and rigid urethane insulation
  2. Clear cavity without moisture penetration
  3. It meets NHBC technical requirements when used with a 50 mm residual cavity
  4. The board is resistant top solvents, fungi and rodents.
  5. Has zero ODP and is CFC/HCFC free
  6. Easy to handle and install
  7. No effect of air movement


Durability
If correctly applied, the board has an infinite life. Apart from this, the durability greatly depends upon the supporting structure.

Certifications

  • Quality systems: BS EN ISO 9001: 2015 /I.S. EN ISO 9001: 2015
Length 1200mm
Width 450mm
Thermal Conductivity 0.022 W/mK
Water vapour resistance 100 MNs/g
Brand Kingspan
Material Type Polyiso
