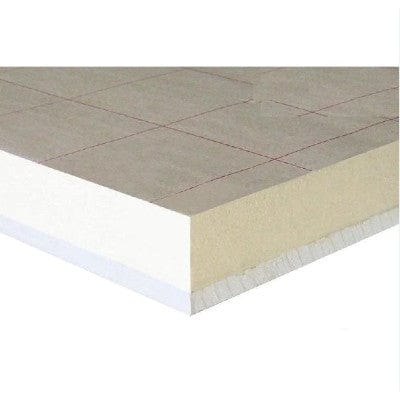

Warmline PIR Insulated Plasterboard 1.2m x 2.4m - All Sizes

Product Code: warmline29

Est Delivery between and

Minimum Order £200.00 Ex Vat (Excl Del Charge)

Polyisocyanurate Foam Bonded to Plasterboard

    • All thicknesses readily available
    • Simple solution to upgrading walls and roofs
    • Quick and easy to install
    • Can be used for both newbuild and refurb
    • A simple way to meet building regulations
    • Cost effective return

Fixing instructions for Dot and dab

    • For bonding Warmline range to a wall use a proprietary gypsum based adhesive.
    • Please follow the manufacturers instructions. As per manufacturers recommendations apply a continuous ribbon of adhesive around any openings.
    • Apply 3 vertical rows of adhesive dabs to the walls at 300mm centres. Also insure that there is a continuous bead at the bottom and top.
    • After the adhesive has set fix a minimum of 2 insulation anchors through the board into the wall. They must go into the masonry by a minimum of 30mm.

Fixing instructions for mechanical fixing

    • Fix to the wall treated batons 50mm x 25mm at a maximum of 600mm centres. Also fit horizontal batons at both floor and ceiling level.
    • l Then fit the warmline board using drywall screws at 150mm centres. Always insure that they penetrate the batons by 25mm.
    • l When installing boards to rafters fix them at right angles to the timbers. To ensure a solid finish bridging pieces are to used inbetween the rafters.

Coverage 2.88m2
Length 2400mm
Material type Polyiso
Thermal conductivity 0.022 W/mK
Thickness 29.5mm, 35mm, 37.5mm, 50.5mm, 52.5mm, 60mm, 62.5mm, 70mm, 72.5mm, 80mm, 82.5mm, 90mm, 92.5mm, 100mm
Width 1200mm
