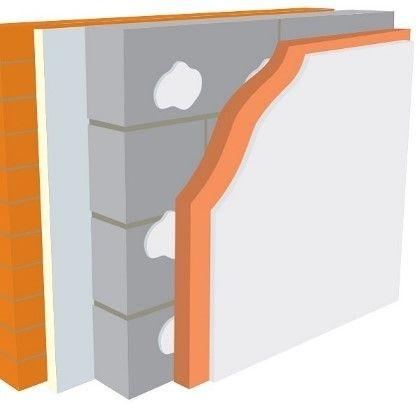

Phenolic Bonded to Plasterboard

The Warmline insulating laminates are designed as a simple effective way to improve the thermal efficency in both walls and roof applications. They are fully applicable with Part L of the building regulations.

Benefits

• All thicknesses readily available
• Simple solution to upgrading walls and roofs
• Quick and easy to install
• Can be used for both newbuild and refurb
• A simple way to meet building regulations
• Cost effective return

Fixing Instructions for Dot and Dab

• For bonding Warmline range to a wall use a proprietary gypsum based adhesive.
• Please follow the manufacturers instructions. As per manufacturers recommendations apply a continuous ribbon of adhesive around any openings.
• Apply 3 vertical rows of adhesive dabs to the walls at 300mm centres. Also insure that there is a continuous bead at the bottom and top.
• After the adhesive has set fix a minimum of 2 insulation anchors through the board into the wall. They must go into the masonry by a minimum of 30mm.

Fixing Instructions for Mechanical Fixing

• Fix to the wall treated batons 50mm x 25mm at a maximum of 600mm centres. Also fit horizontal batons at both floor and ceiling level.
• Then fit the Warmline board using drywall screws at 150mm centres. Always insure that they penetrate the batons by 25mm.
• When installing boards to rafters fix them at right angles to the timbers. To ensure a solid finish bridging pieces are to used inbetween the rafters.
