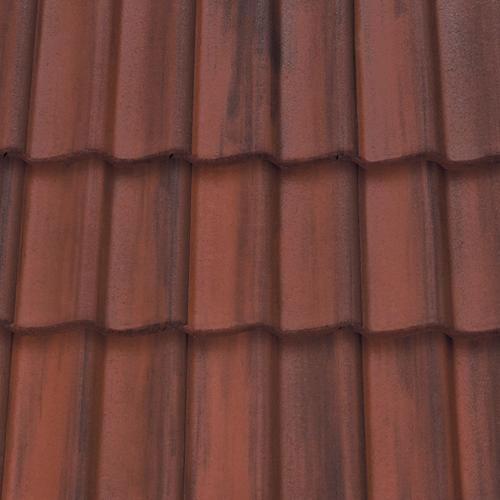

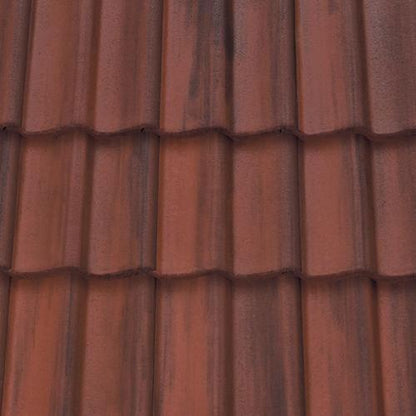

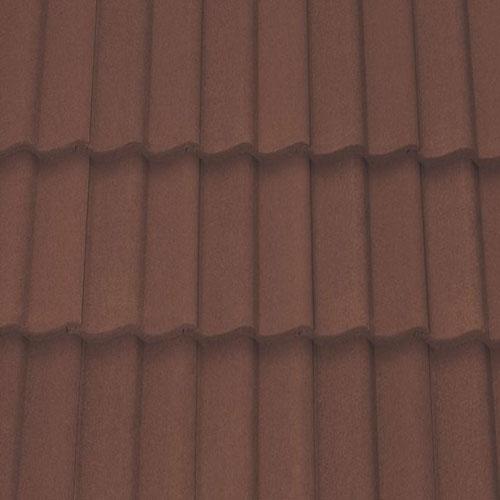

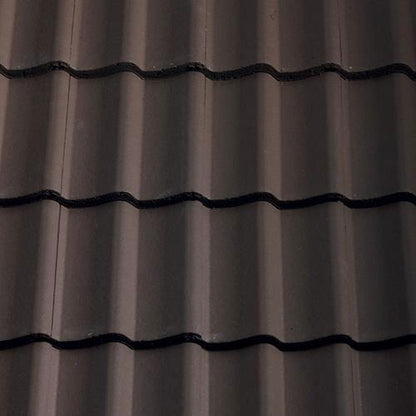

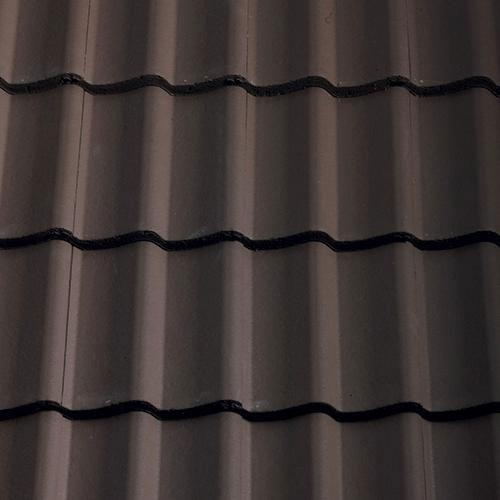

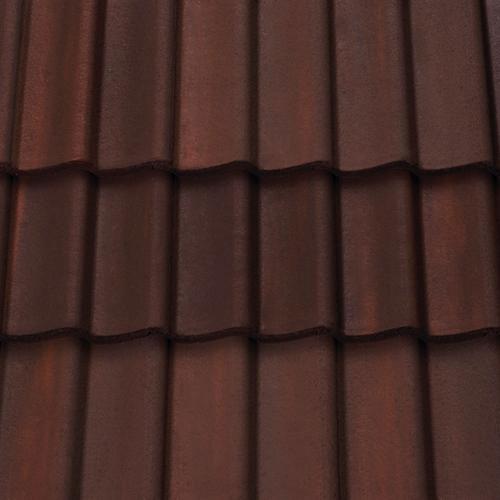

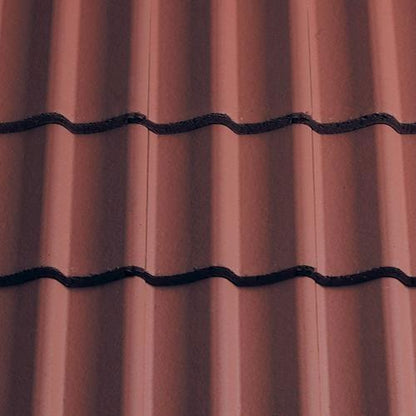

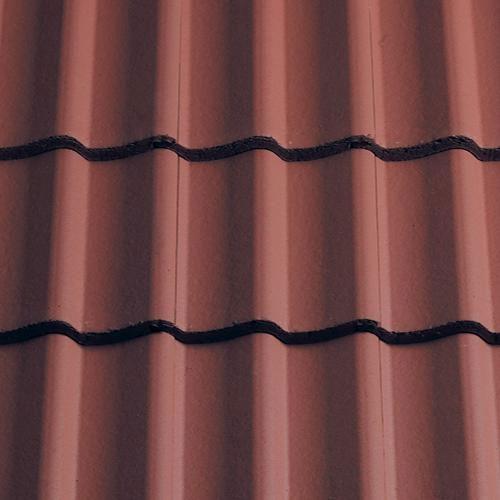

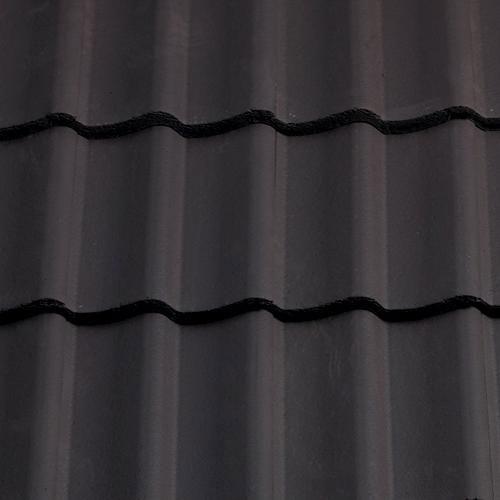

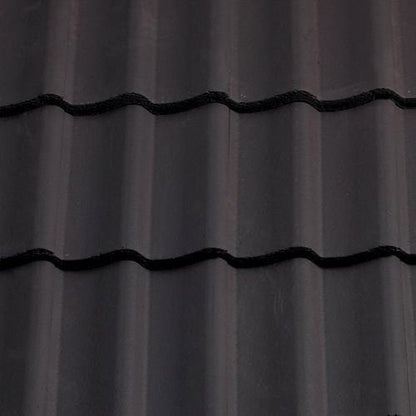

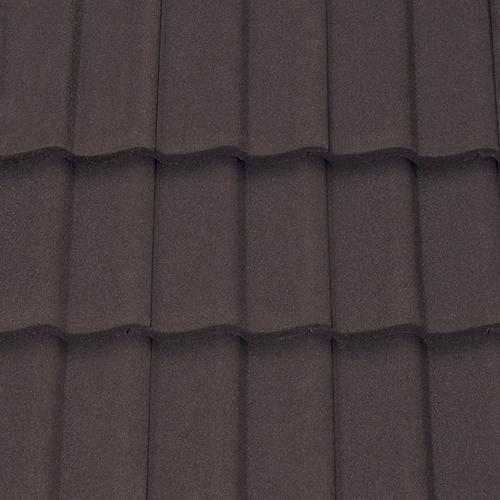

Sandtoft Double Pantile Concrete Roof Tiles - All Colours

At Build4less.co.uk, we are pleased to offer the Sandtoft Double Pantile Concrete Roof Tiles to our customers. These tiles are a popular and cost-effective roofing option that provides a traditional pantile look with the added strength of a curved design. They are produced by Sandtoft, a company known for their high-quality and consistent concrete tiles.

One of the standout features of the Sandtoft Double Pantile is its versatility. It can perform down to pitches as low as 15 degrees, making it suitable for both main roof coverings and low pitched extensions. The interlocking design of these tiles ensures a secure fit that will keep your roof protected from the elements.

While the Sandtoft Double Pantile is a popular option, it is important to note that it may not be suitable for all roof pitches. The minimum pitch for a smooth finish is 15 degrees at a 100mm headlap or 22.5 degrees at a 75mm headlap. If you require a sandfaced finish, the minimum pitch is 30 degrees with a 75mm headlap. It is also important to ensure that the headlap is between 75mm and 120mm.

The maximum batten gauge for this tile is 345mm, while the minimum batten gauge is 300mm. The number of battens needed per square meter is 3.1 linear meters at 100mm headlap and 2.9 linear meters at 75mm headlap. The batten size required depends on the rafter centers, which can be up to 450mm with a 38 x 25mm batten or up to 600mm with a 50 x 25mm batten.

One of the benefits of the Sandtoft Double Pantile is its covering capacity. It has a covering capacity of 10.4 tiles per square meter with a 100mm headlap and 9.7 tiles per square meter with a 75mm headlap. The cover width is 300mm, while the profile depth is 55mm. The hanging length of the tile is 402mm, and the size of each tile is 420 x 334mm.

Application

The Sandtoft Double Pantile Concrete Roof Tiles are a versatile roofing solution that can be used in a variety of applications. With its traditional pantile look and added strength of a curved design, this tile is an excellent option for both main roof coverings and low pitched extensions.

One of the standout features of the Sandtoft Double Pantile is its ability to perform down to pitches as low as 15 degrees. This makes it an ideal choice for extensions or other projects where a low-pitched roof is required.

The interlocking design of the tiles ensures a secure fit that will keep your roof protected from the elements. This is especially important in areas with high winds or other extreme weather conditions.

The Sandtoft Double Pantile is suitable for use on a range of building types, including residential, commercial, and industrial buildings. It is also a popular option for agricultural buildings, where its durability and strength are highly valued.

When installing the Sandtoft Double Pantile, it is important to ensure that the roof pitch and headlap meet the minimum requirements. The headlap must be between 75mm and 120mm, and the minimum pitch for a smooth finish is 15 degrees at a 100mm headlap or 22.5 degrees at a 75mm headlap. If a sandfaced finish is required, the minimum pitch is 30 degrees with a 75mm headlap.

Overall, the Sandtoft Double Pantile Concrete Roof Tiles are a great option for those in need of a versatile and cost-effective roofing solution. Whether you are working on a residential, commercial, or industrial building, these tiles are sure to provide the traditional pantile look and added strength you need to keep your roof protected for years to come.

Pros:

• Cost-effective: The Sandtoft Double Pantile Concrete Roof Tiles are an affordable roofing option that provides a traditional pantile look with the added strength of a curved design.
• Versatile: These tiles can perform down to pitches as low as 15 degrees, making them suitable for both main roof coverings and low pitched extensions.
• Secure fit: The interlocking design of the tiles ensures a secure fit that will keep your roof protected from the elements.
• High-quality: Produced by Sandtoft, a company known for their high-quality and consistent concrete tiles, you can be confident that these tiles are made to a high standard.

Cons:

• Not suitable for all roof pitches: While the Sandtoft Double Pantile is a versatile option, it may not be suitable for all roof pitches. The minimum pitch for a smooth finish is 15 degrees at a 100mm headlap or 22.5 degrees at a 75mm headlap. If you require a sandfaced finish, the minimum pitch is 30 degrees with a 75mm headlap.
• Headlap restrictions: The headlap of the tile must be between 75mm and 120mm, which may not be suitable for all roofing projects.
• Batten restrictions: The batten size required depends on the rafter centers, which can be up to 450mm with a 38 x 25mm batten or up to 600mm with a 50 x 25mm batten. This may limit your options for batten sizes and configurations.

Frequently Asked Questions

What is the weight of the Sandtoft Double Pantile Concrete Roof Tile? The weight of the tile per square meter when laid with a 100mm headlap is 48.9 kg, while the weight is 45.6 kg per square meter with a 75mm headlap. The weight per 1000 tiles is 4.86 tonnes, and the weight per tile is 4.72 kg.

What is the covering capacity of the Sandtoft Double Pantile? The covering capacity is 10.4 tiles per square meter with a 100mm headlap and 9.7 tiles per square meter with a 75mm headlap.

What is the maximum and minimum roof pitch for the Sandtoft Double Pantile? The minimum pitch for a smooth finish is 15 degrees at a 100mm headlap or 22.5 degrees at a 75mm headlap. If a sandfaced finish is required, the minimum pitch is 30 degrees with a 75mm headlap. The maximum pitch is 90 degrees.

What is the maximum and minimum headlap required for the Sandtoft Double Pantile? The headlap must be between 75mm and 120mm.

What is the batten size required for the Sandtoft Double Pantile? The batten size required depends on the rafter centers, which can be up to 450mm with a 38 x 25mm batten or up to 600mm with a 50 x 25mm batten.

What is the maximum and minimum batten gauge for the Sandtoft Double Pantile? The maximum batten gauge is 345mm, while the minimum batten gauge is 300mm.

Is the Sandtoft Double Pantile suitable for all roofing projects? While the Sandtoft Double Pantile is a versatile option, it may not be suitable for all roof pitches. The minimum pitch for a smooth finish is 15 degrees at a 100mm headlap or 22.5 degrees at a 75mm headlap. If a sandfaced finish is required, the minimum pitch is 30 degrees with a 75mm headlap. It is important to ensure that the headlap is between 75mm and 120mm.

What type of nail is recommended for the Sandtoft Double Pantile? The tile nails used for this tile are 65 x 3.75 mm aluminium ring shank clout head.

What is the size of the Sandtoft Double Pantile? The size of each tile is 420 x 334 mm.

Customer Feedback

Customers who have used the Sandtoft Double Pantile Concrete Roof Tiles from build4less.co.uk have generally been very satisfied with the product. The tiles are a cost-effective and versatile option for both main roof coverings and low pitched extensions, and provide a traditional pantile look with added strength in their curved design.

Customers have praised the tiles' ability to perform down to pitches as low as 15 degrees, making them ideal for a variety of projects. The interlocking design of the tiles ensures a secure fit, providing protection from the elements.

One thing to note is that the Sandtoft Double Pantile may not be suitable for all roof pitches, so it's important to check the technical specifications carefully. However, overall, customers have found the tiles to be of high quality and consistent in their production.

In conclusion, customers have found the Sandtoft Double Pantile Concrete Roof Tiles to be a great option for those in need of a cost-effective and versatile roofing solution. The traditional pantile look, added strength in the curved design, and secure fit of the interlocking tiles provide protection and longevity to any project.
