Sangamo

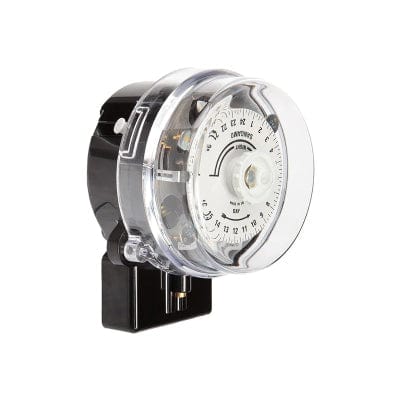

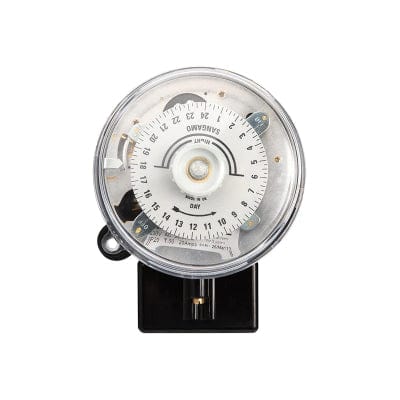

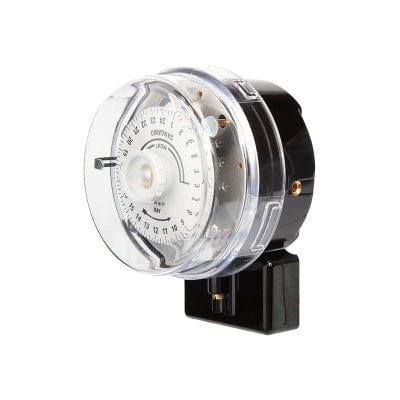

S255 Round Pattern 4 Pin On-Off Time Switch

S255 Round Pattern 4 Pin On-Off Time Switch

S255.2

EST Delivery Date Est Delivery between 6th Feb and 12th Feb.

Free Delivery on Sangamo products

£185.89 £223.07
£185.89 £223.07 £0.00
Save Sold out
Function

How much will I need?

Coverage required
x

We recommend adding 10% of additional product to the calculation to account for errors, damages, and obstacles in your project

Based on your total area of 0m2 (inc. 10% wastage) you will need 1 of this product (total coverage ).
Calculate
 More payment options
Add sampleAdd sample
Product Information

Round Pattern (RPTS) Standard time switches are robust, 20amp switches that are ideal for the switching of heating and lighting applications- up to three times a day. The S255 has a 4-pin base which means it has independent motor connections which enable a different switching circuit voltage from the voltage powering the time switch. The day omit feature means you can skip any day of the week if necessary. There is also a manual override button for your convenience. The S255 is a fit-and-forget time clock.

Key Features:

  • Programming: 24 hour with on/off operations
  • Current Rating: 20A
  • Battery Reserve: None
  • Day Omit Dial: Yes (Omits the 'ON' operation)
  • Temporary override (manual button)
                Technical Specifications
                Accessories FD930 Conduit Box Time Switch
                Brand Sangamo
                Conforms to BS EN60730
                Day omission Yes (omits the “ON” operation)
                Dial calibration 15 min divisions
                Dimensions (mm) 146.5 x 105.7 x 82 (H x W x D)
                Display 24 hour dial
                Features Early On, 1 Day/Week
                Ingress protection IP20
                Minimum period between like operations 1.75 Hrs
                Minimum period between unlike operations 15 Mins
                Mounting Surface
                Power reserve No
                Programming schedule 24 hour programme with 2 ON/OFF operations per day
                Temporary override facility (manual button) Advance to “OFF”, when program “ON” and will remain “OFF” until next “ON” operation and Vice Versa
