Sangamo

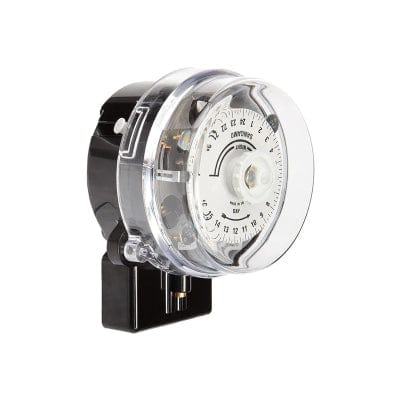

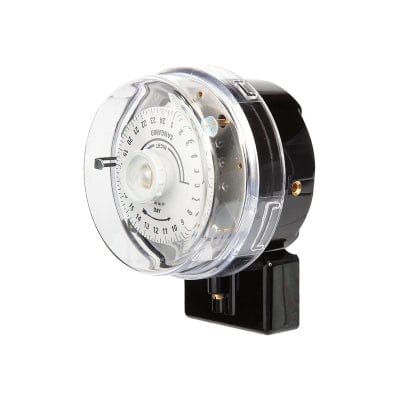

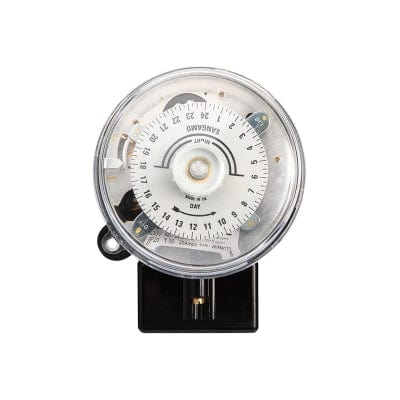

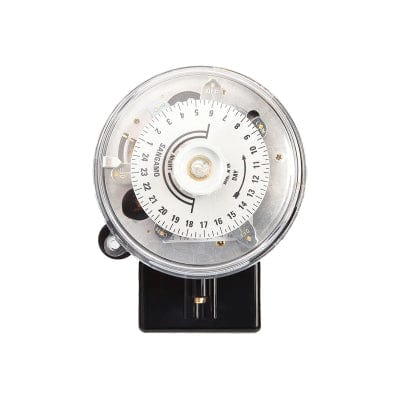

S254 Round Pattern 3 Pin On-Off Time Switch

S254 Round Pattern 3 Pin On-Off Time Switch

S254.2

EST Delivery Date Est Delivery between 6th Feb and 12th Feb.

Free Delivery on Sangamo products

£181.89 £218.27
£181.89 £218.27 £0.00
Save Sold out
Function

How much will I need?

Coverage required
x

We recommend adding 10% of additional product to the calculation to account for errors, damages, and obstacles in your project

Based on your total area of 0m2 (inc. 10% wastage) you will need 1 of this product (total coverage ).
Calculate
 More payment options
Add sampleAdd sample
Product Information

The 24 hour programming time switch cycle performs the same sequence of switching operations on each day and can be quickly and easily set using the small manual levers on the dial. A “day omit” device allows you to select any number of days in the week on which the switching cycle can be disabled. A general purpose time switch for heating, ventilation and equipment control applications

Key Features:

  • Programming: 24 hour with 2 or 3 on/off operations
  • Current Rating: 20A
  • Connection Pins: 3
  • Battery Reserve: None
  • Day Omit Dial: Yes (Omits the ‘ON’ operation)
                Technical Specifications
                Accessories FD930 Conduit Box Time Switch
                Brand Sangamo
                Conforms to BS EN60730
                Day omission Yes (omits the “ON” operation)
                Dial calibration 15 min divisions
                Dimensions (mm) 146.5 x 105.7 x 82 (H x W x D)
                Display 24 hour dial
                Features Early On, 1 Day/Week
                Ingress protection IP20
                Minimum period between like operations 1.75 Hrs
                Minimum period between unlike operations 15 Mins
                Mounting Surface
                Power reserve No
                Programming schedule 24 hour programme with 2 ON/OFF operations per day
                Temporary override facility (manual button) Advance to “OFF”, when program “ON” and will remain “OFF” until next “ON” operation and Vice Versa
