FLOPLAST

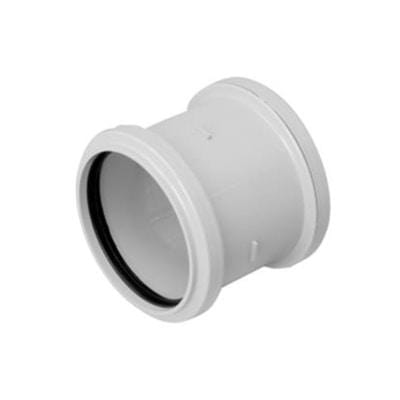

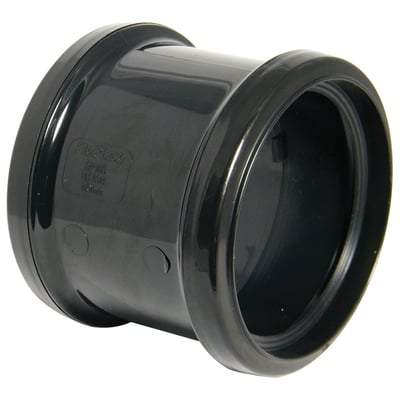

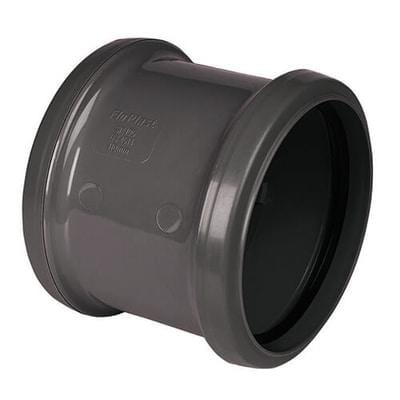

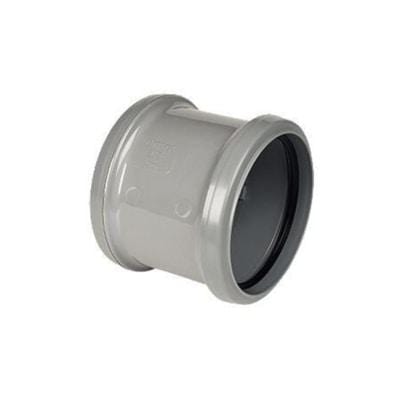

Ring Seal Soil Coupling Double Socket 110mm - All Colours

The option you have currently selected is a call to enquire option. Please call us on 020-3481-1978 for more information or select an alternative option.
Regular price
£3.39 £4.07
Was:
£0.00
Now Only:
£3.39 £4.07
Sold out
Unit price
per
+
✔ This product is eligible for our buy now & pay later scheme - available at checkout (read more)
FLOPLAST

Ring Seal Soil Coupling Double Socket 110mm - All Colours

Product Code: SP105B

Our FloPlast ring seal soil system is compatible with most other soil systems that are manufactured to British/European standard.

Ring Seal Soil Coupling Double Socket has a ring seal push fit socket on each end to connect to a plain ended pipes or to the spigot (plain end) of another fitting.

Fixing Guide

Install and test system in accordance with BS EN 1610:1998.

  • Commence the stack from the base and work up. Mark the position of the brackets and drill and fix screws before erecting.
  • Fix pipe or socket brackets at maximum 2m centres vertical and at maximum 1m centres horizontal.
  • An allowance for expansion should be made by with drawing all pipe and fitting spigots sockets by 10mm. Soil Fittings with spigot ends can be inserted into the socket to depth marks engraved on the spigot to ensure correct allowance is made for expansion. Expansion joints should be incorporated every 4m.
  • The use of silicone lubricant on all seals will facilitate jointing.
  • The system should incorporate suitable access points to enable testing and maintenance of the system.
Brand Floplast
Color Black
Material type PVC-U
Size 110mm
Type Double Socket

For information on delivery costs and more click here.


Description

Our FloPlast ring seal soil system is compatible with most other soil systems that are manufactured to British/European standard.

Ring Seal Soil Coupling Double Socket has a ring seal push fit socket on each end to connect to a plain ended pipes or to the spigot (plain end) of another fitting.

Fixing Guide

Install and test system in accordance with BS EN 1610:1998.

  • Commence the stack from the base and work up. Mark the position of the brackets and drill and fix screws before erecting.
  • Fix pipe or socket brackets at maximum 2m centres vertical and at maximum 1m centres horizontal.
  • An allowance for expansion should be made by with drawing all pipe and fitting spigots sockets by 10mm. Soil Fittings with spigot ends can be inserted into the socket to depth marks engraved on the spigot to ensure correct allowance is made for expansion. Expansion joints should be incorporated every 4m.
  • The use of silicone lubricant on all seals will facilitate jointing.
  • The system should incorporate suitable access points to enable testing and maintenance of the system.


Technical Specifications

Brand Floplast
Color Black
Material type PVC-U
Size 110mm
Type Double Socket
