Rafter Bracket - Full Range

SKU: CJRASSDGR

Est Delivery between and .

Next Day Delivery on Orders placed before 11am (ex. weekends)

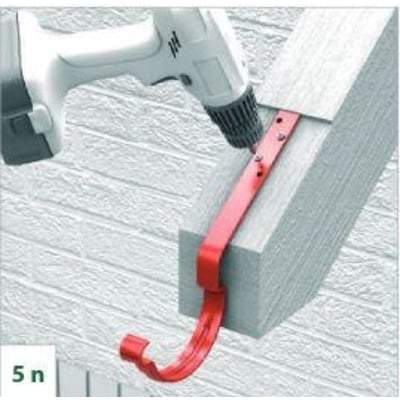

Is mounted on the rafter to support the gutter. Use the bending tool to bend the hooks and adjust according to the slope of the roof. Manufactured from 4mm thick steel for high loads. Brackets to be spaced at a maximum of 800mm centres to support the gutter. This can be side fitted to rafters but will require the installer to twist bracket accordingly.

Key Features

  • Heavy duty bracket can withstand heavy snow loads
  • Can change the angle on site to suite roof pitch
  • Gutter snaps in to place easily and holds firm
  • 5 year manufacturer's warranty
  • Fully Recyclable product

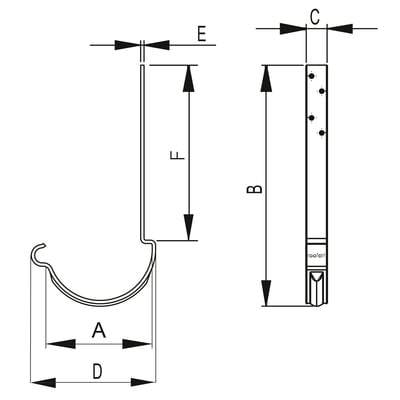

Dimensions for 125mm (see drawing):

  • Dim A - 125mm
  • Dim B - 265mm
  • Dim C - 25mm
  • Dim D - 150mm
  • Dim E - 4mm
  • Dim F - 185mm



Dimensions for 150mm (see drawing):

  • Dim A - 150mm
  • Dim B - 290mm
  • Dim C - 30mm
  • Dim D - 177mm
  • Dim E - 4mm
  • Dim F - 185mm
Arm Length 184mm
brand RoofArt
Material Thickness 4mm
