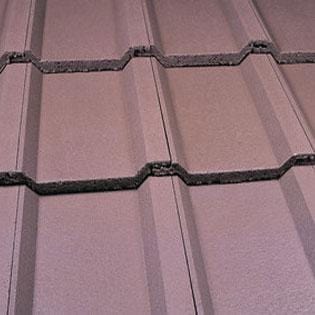

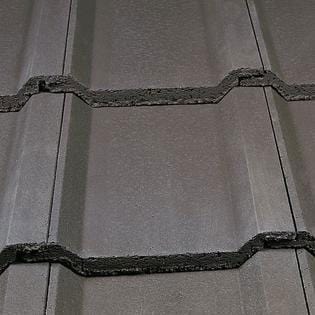

Marley Wessex Concrete Roof Tiles - All Colours
Adding product to your cart
Designed to shed water efficiently at pitches down to 15° the Wessex interlocking tile has clean, simple lines with a pleasing minimalist style.
All Marley concrete interlocking tiles can achieve an 'A+' rating (the lowest environmental impact) in the Building Research Establishment's Green Guide to Specification.
Advantages:
- Low pitch solution
- Minimalist style.
- Designed to shed water efficiently
- Can achieve an A+ rating in the BRE Green Guide to Specification
Notes
The effectiveness of the tile or slate to operate at the minimum recommended pitch and lap may be influenced by special circumstances. Guidance on pitch and lap should be obtained from the Technical Advisory Service for the following:
- Interlocking tiles and slates where the roof slope exceeds 6 metres in length and/or the site is rated to be in a severe exposure category.
- Double-lap fibre cement slates where the roof slope exceeds 6 metres in length (severe/very severe exposure) and 9 metres in length (sheltered/moderate exposure).
| Batten size recommended | 38 x 25mm for rafters/supports not exceeding 450mm centres. 50 x 25mm for rafters/supports not exceeding 600mm centres |
| Battens required | 2.9 lin.m/m2 at 75mm headlap. 3.1 lin.m/m2 at 100mm headlap |
| Cover width | 298mm (nominal) |
| Hanging length | 403mm |
| Headlap | 75mm |
| Material type | Concrete |
| Maximum gauge | 345mm |
| Maximum pitch | 44 |
| Minimum pitch | 15 |
| Size overall | 420mm x 330mm |
| Sold per | pack |
| Tile coverage | 9.7 tiles/m2 at 75mm headlap. 10.4 tiles/m2 at 100mm headlap |
| Weight of tiling | 50 kg/m2 (0.49kN/m2) at 75mm headlap. 53 kg/m2 (0.52kN/m2) at 100mm headlap |
For information on delivery costs and more click here.
Description
Designed to shed water efficiently at pitches down to 15° the Wessex interlocking tile has clean, simple lines with a pleasing minimalist style.
All Marley concrete interlocking tiles can achieve an 'A+' rating (the lowest environmental impact) in the Building Research Establishment's Green Guide to Specification.
Advantages:
- Low pitch solution
- Minimalist style.
- Designed to shed water efficiently
- Can achieve an A+ rating in the BRE Green Guide to Specification
Notes
The effectiveness of the tile or slate to operate at the minimum recommended pitch and lap may be influenced by special circumstances. Guidance on pitch and lap should be obtained from the Technical Advisory Service for the following:
- Interlocking tiles and slates where the roof slope exceeds 6 metres in length and/or the site is rated to be in a severe exposure category.
- Double-lap fibre cement slates where the roof slope exceeds 6 metres in length (severe/very severe exposure) and 9 metres in length (sheltered/moderate exposure).
Technical Specifications
| Batten size recommended | 38 x 25mm for rafters/supports not exceeding 450mm centres. 50 x 25mm for rafters/supports not exceeding 600mm centres |
| Battens required | 2.9 lin.m/m2 at 75mm headlap. 3.1 lin.m/m2 at 100mm headlap |
| Cover width | 298mm (nominal) |
| Hanging length | 403mm |
| Headlap | 75mm |
| Material type | Concrete |
| Maximum gauge | 345mm |
| Maximum pitch | 44 |
| Minimum pitch | 15 |
| Size overall | 420mm x 330mm |
| Sold per | pack |
| Tile coverage | 9.7 tiles/m2 at 75mm headlap. 10.4 tiles/m2 at 100mm headlap |
| Weight of tiling | 50 kg/m2 (0.49kN/m2) at 75mm headlap. 53 kg/m2 (0.52kN/m2) at 100mm headlap |
