RoofArt
Downpipe Branch - Full Range
Downpipe Branch - Full Range
SKU:RBRASSDGR
Est Delivery between 6th Feb and
12th Feb.

Add £350£420 to your overall order to unlock FREE delivery.
How much will I need?
We recommend adding 10% of additional product to the calculation to account for errors, damages, and obstacles in your project
Couldn't load pickup availability


Product Information

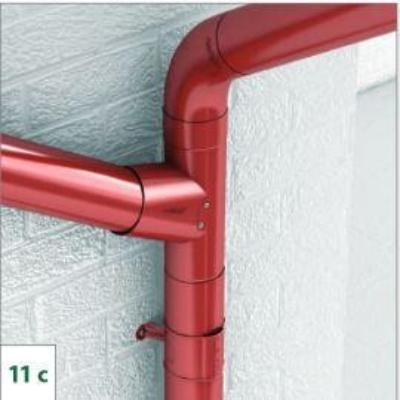

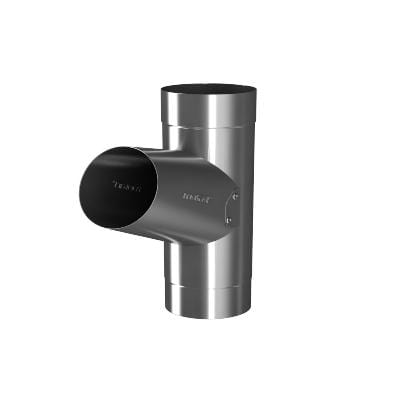

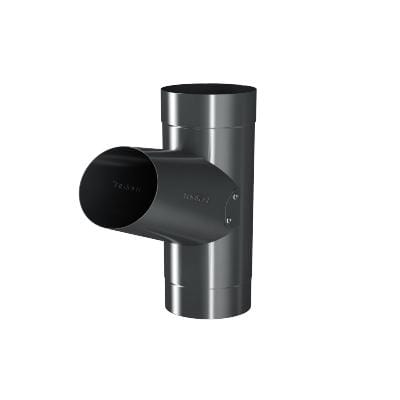

Downpipe Branch joins two water drainage pipes. Plain end on the top opening and male spigot end on the bottom to join to other lengths of pipe. The bottom end of the branch is male ended (spigoted) so fits directly into a plain end of pipe.
Key Features
- Stylish branded design
- Easy push fit connection
- Hard wearing painted finish (Swedish SSAB Colourcoat Steel Coil)
- 5 year manufacturer's warranty
- Fully recyclable product

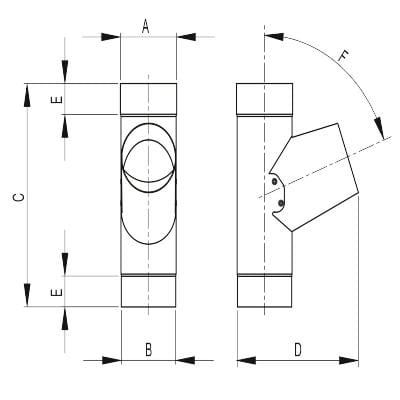

Dimensions for 87mm (see drawing):
- Dim A - 89mm
- Dim B - 86mm
- Dim C - 290mm
- Dim D - 180mm
- Dim E - 40mm
- Dim F - 60 degree
Dimensions for 100mm (see drawing):
- Dim A - 100mm
- Dim B - 98mm
- Dim C - 310mm
- Dim D - 190mm
- Dim E - 40mm
- Dim F - 60 degree
Technical Specifications
Brand | RoofArt |
Effective height | 250mm |
Length of socket (male end) | 40mm |
Manufacturers warranty | 5 Years |
Material thickness | 0.7mm |
Overall height | 290mm |
